Washing reactors

• High performance washing tank for plastic flakes
• Thermally isolated reactor
• Heavy duty agitator
• Suitable for working in continuous or batch mode
• Automatic temperature control
• Automatic detergent dosing system
• Electrical or GLP heating system

PHW-500 PHW-1000 PHW-2000
Length (mm) 9500 11300 11300
Width (mm) 1980 1980 5500
Height (mm) 5250 5250 5250
Production capacity (kg/h) 500-750 1000-1200 2000-2500

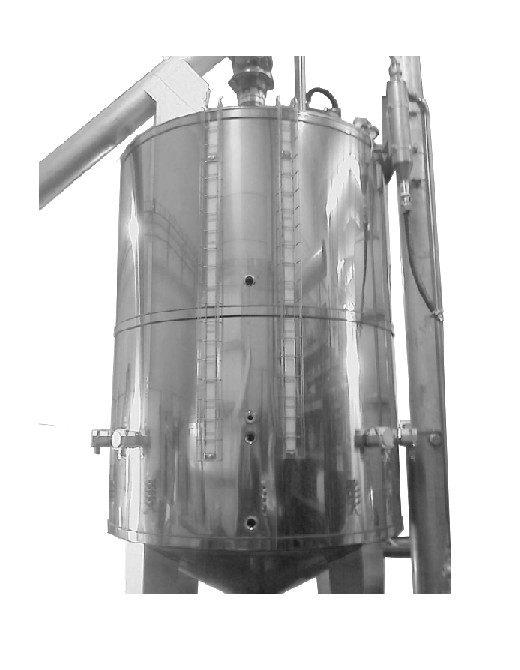

The Petalus PHW series consist of a stainless steel made reactor tank that is equipped with a heavy duty agitator. The tank is full of hot water and detergent, and once the material is dumped inside, it remains for a period of time while agitators are working. This system performs a highly energetic washing, that removes the adhesives and severe oil impregnations from the material.

The Petalus PHW washing process causes a minimal degradation of the material, and produce a high quality recycled plastic.

The system includes the feeding and the output screw conveyors.
