Optical sorters

• Separation of bulk materials by color and transparency
• High accuracy separation of small particles
• High definition CMOS RGB cameras
• Suitable for sorting plastics, metals and seeds
• Material recirculating system (optional)
• Easy sorting solution configuration
• Touchscreen and user friendly interface
• Long life and low energy LED lighting
• Remote access and real time monitoring
• High speed ejectors

Specifications
X300 X600 X900 X1200
Length (mm) 2800 2800 2800 2800
Width (mm) 640 940 1240 1540
Height (mm) 1500 1500 1500 1500
Modules 1 2 3 4
Channels 64 128 192 256
Resolution (px) 1920 1920 1920 1920
Accuracy (%) 99.5 99.5 99.5 99.5
Power (kW) 0.9 1.0 1.1 1.2
Min. air press. (bar) 6 6 6 6
Production (T/h) 0.2-0.5 0.4-1.0 0.6-1.5 0.8-2.0



Category:

Description

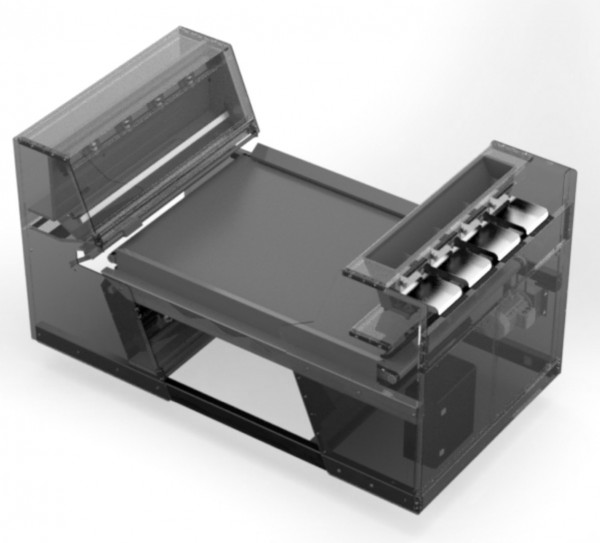

The Petalus POS-X color sorter series have been designed to separate small size particles, that are specially difficult to separate. It is equipped with high resolution CMOS RGB cameras, that combined with our cutting-edge software technology, can perform a high accuracy separation of many kinds of material by color and transparency.
The material inspection is carried out on transporting belts, so the separation it is better, more stable and more uniform. Our sorters are equipped with an automated LED light background, so the cameras can better see the material to reject.
Our engineers have designed a user friendly interface, so creating new sorting solutions is easy and intuitive. Just let the cameras take a picture of the material, and use the pointer to select the particles you want to reject.
